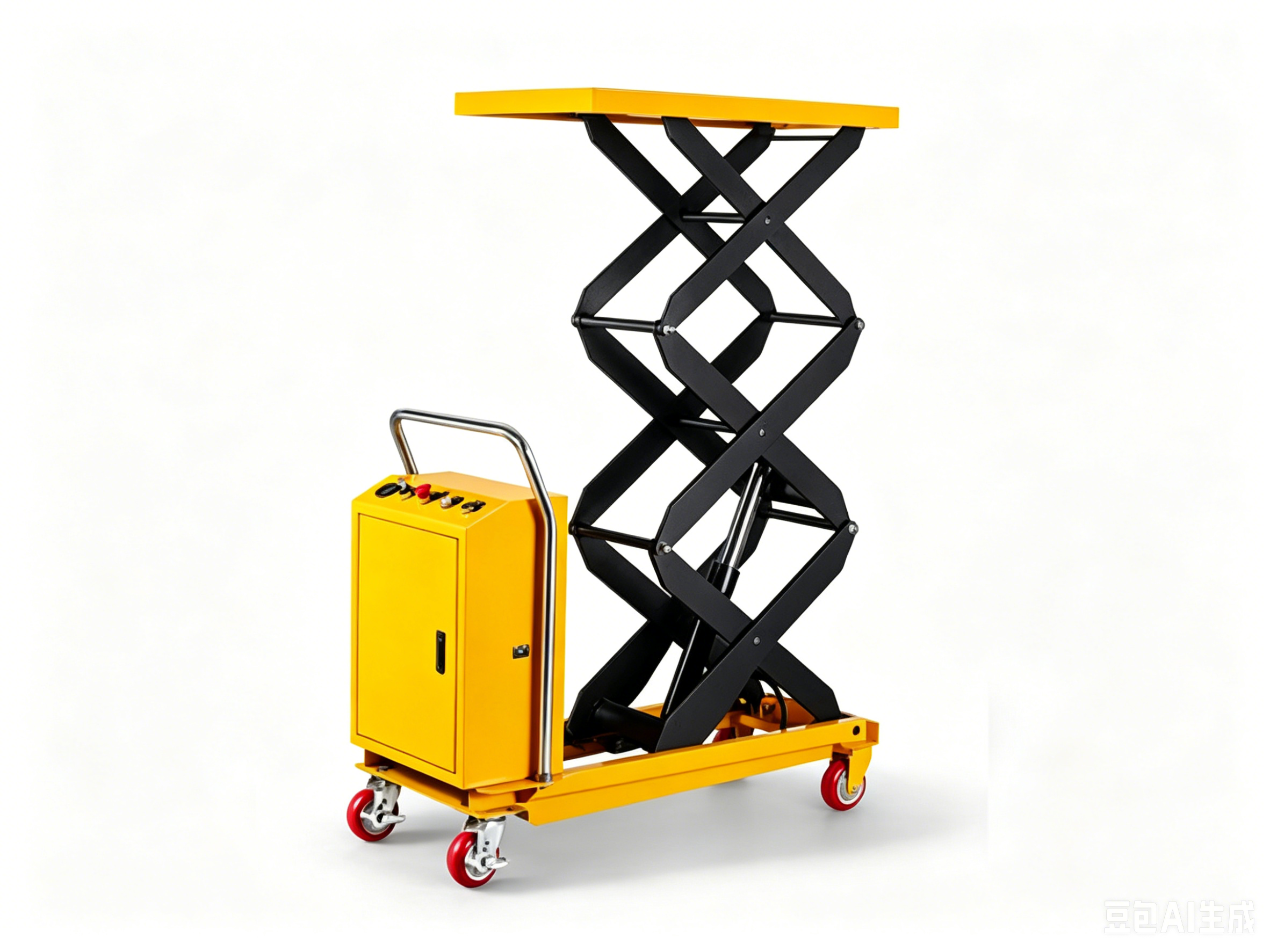

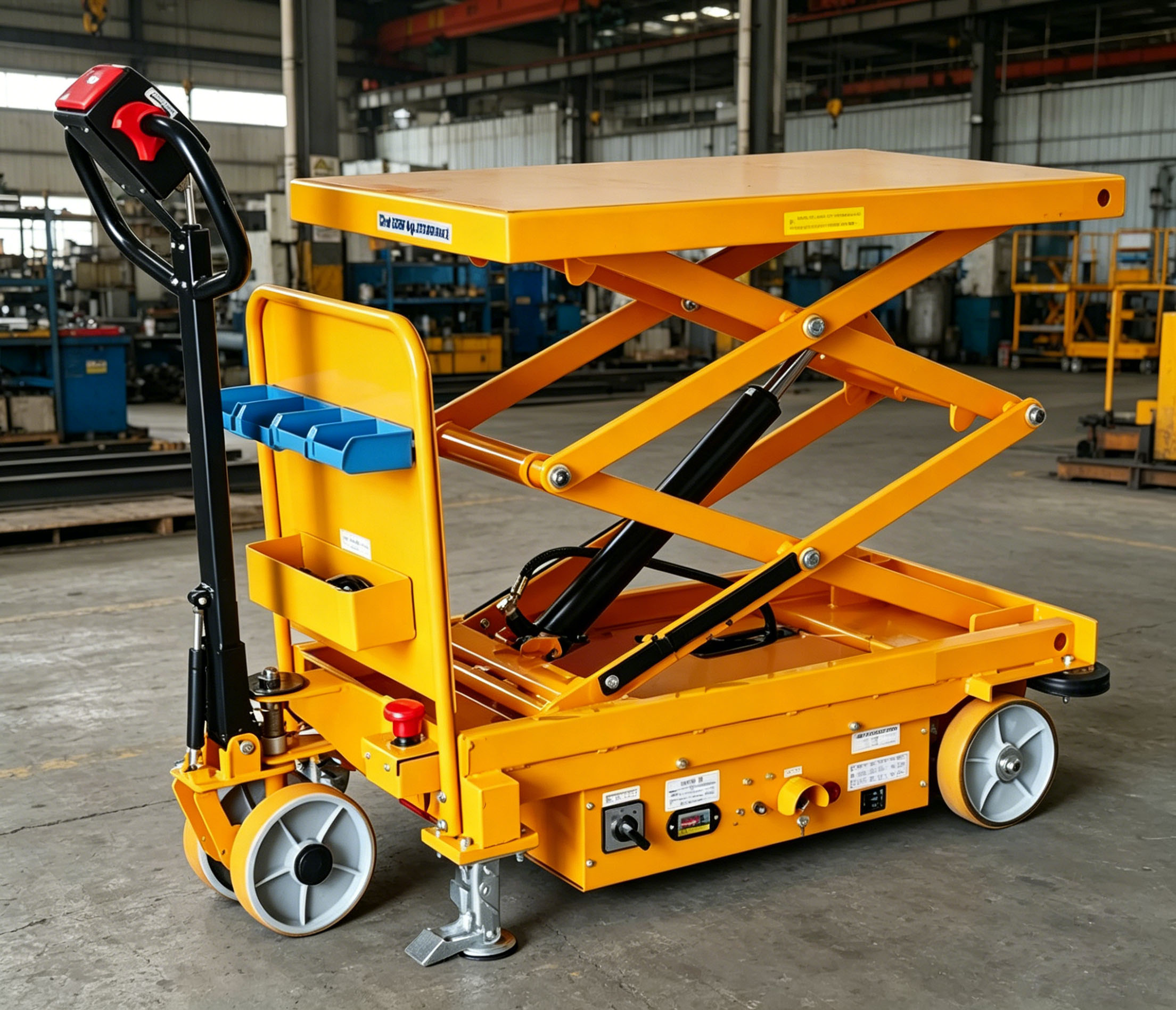

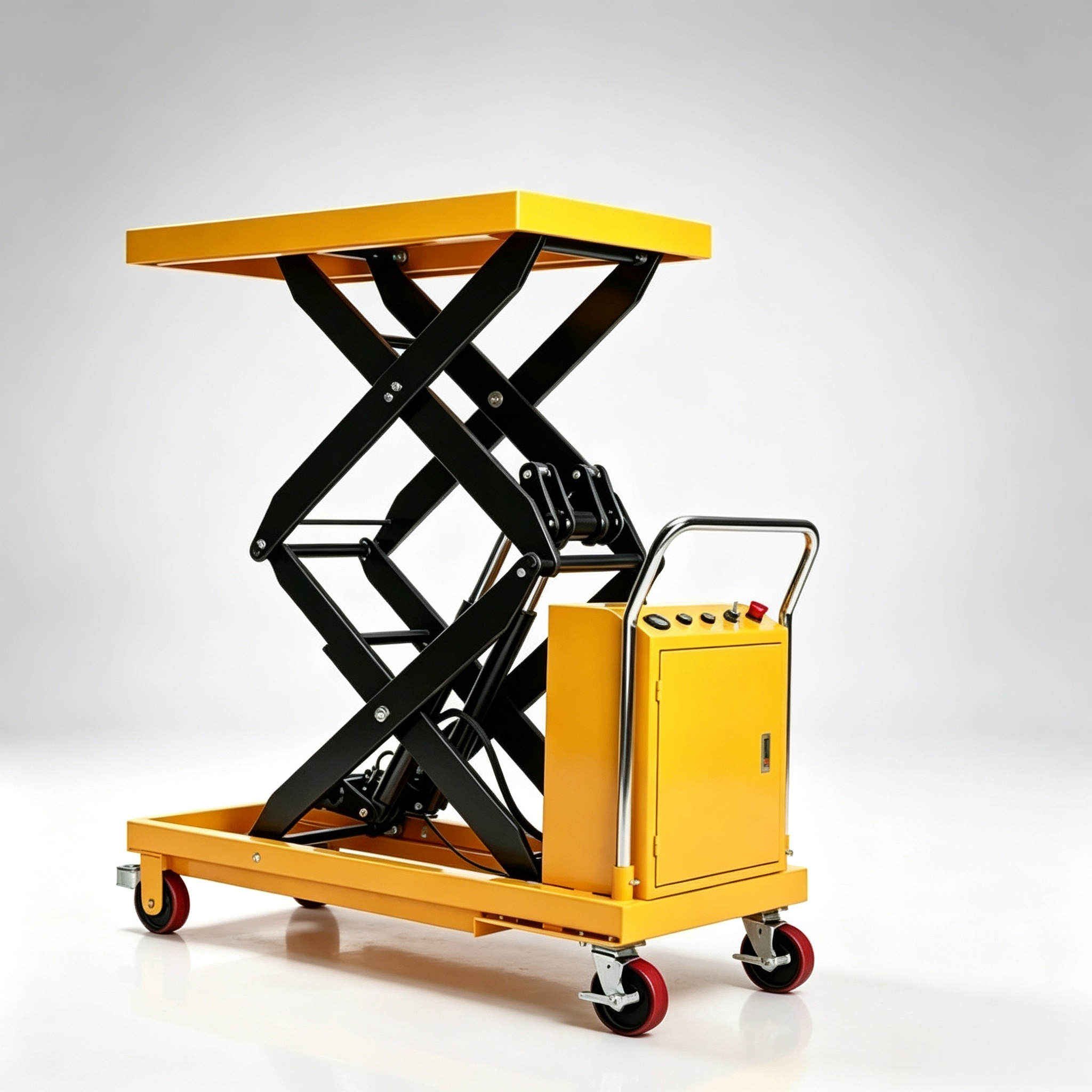

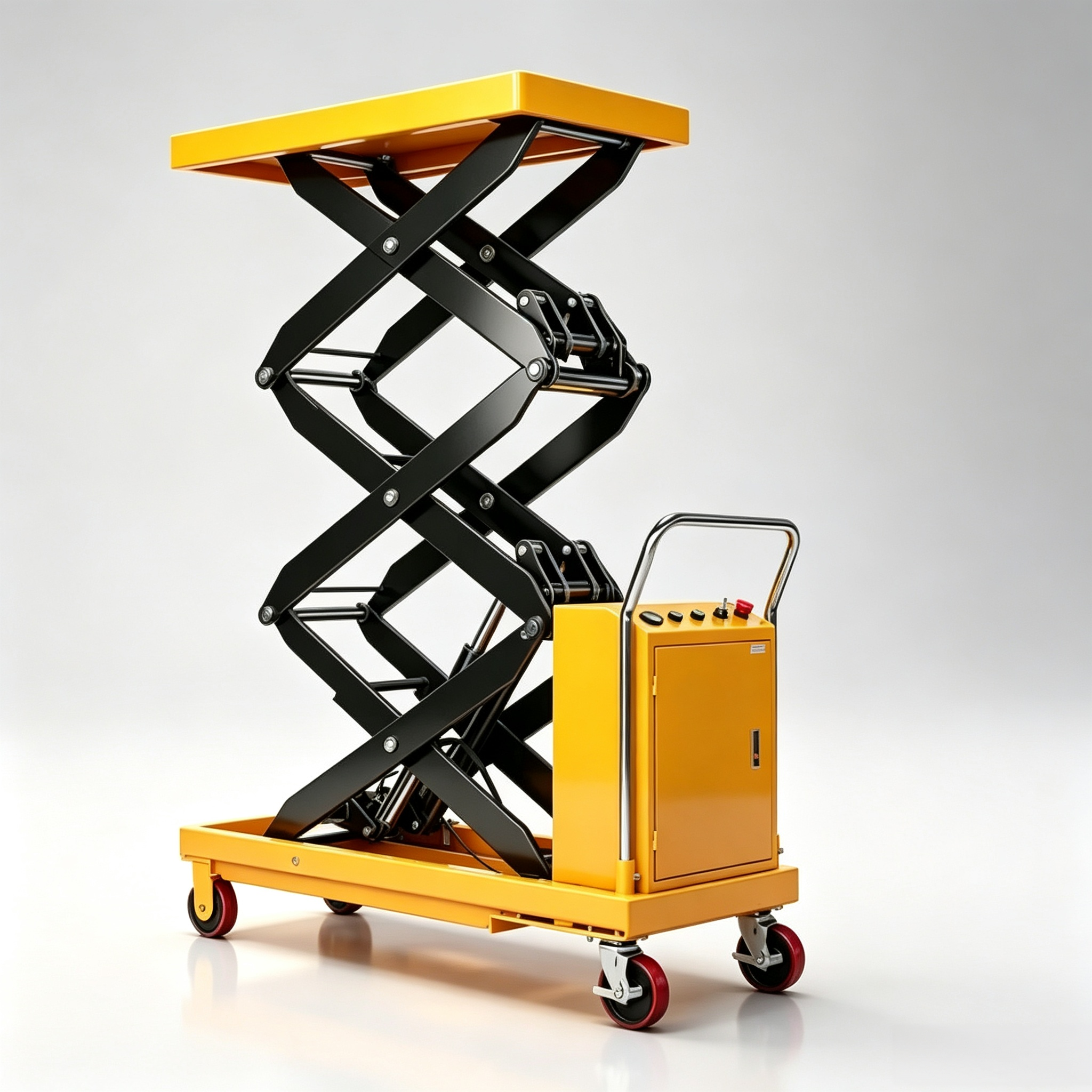

Mobile Scissor Lifting Platform
Electro-hydraulic driven for stable lifting, used for aerial work and vertical cargo transport. Spacious platform with full safety devices. Mobile type is easy to relocate. Low noise and energy consumption, simple to operate for workshops, venues and warehouses.

Product Parameters

Electric lifting platforms are specialized aerial work equipment. Powered by electro-hydraulic system, they deliver stable lifting and even load distribution, and are mainly applied for cargo lifting, overhead maintenance, high-level picking in warehouses, venue operation & maintenance as well as workshop assembly. Equipped with a spacious platform, the equipment allows simultaneous cargo placement and personnel operation. Complete safety configurations including guardrails, anti-slip platform surface and fall protection fully safeguard on-site work. Featuring well-sealed hydraulic components, it lifts without jitter or tilt, with various lifting height options available.  Mobile models are fitted with travelling wheels and steering mechanism for flexible relocation, while stationary types can be customized to match dedicated workstations. The unit operates with low noise and low energy consumption. Its user-friendly control panel ensures responsive start and stop of lifting movements. Boasting a robust and durable structure with reliable load performance, it serves as an efficient dedicated solution for indoor and outdoor aerial work and vertical cargo transportation.

Specifications

Model

Load/kg

Weight/kg

Lifting height/m

Platform size/mm

Dimensions/mm

HT-0.5-4

500

670

4

2010*830

2016*1000*1120

HT-0.5-6

500

730

6

2010*830

2016*1000*1170

HT-0.5-6.8

500

780

6.8

2010*830

2016*1000*1170

HT-0.5-8

500

860

8

2010*830

2016*1000*1260

HT-0.5-9

500

1080

9

2010*830

2016*1000*1480

HT-0.5-10

500

1300

10

2010*1130

2016*1290*1540

HT-0.3-11

300

1400

11

2010*1130

2016*1290*1660

HT-0.5-12

500

2050

12

2500*1210

2500*1360*1780

HT-0.5-14

500

2540

14

2845*1420

2845*1620*1895

HT-0.3-16

300

2700

16

2845*1420

2845*1620*2055

HT-0.3-18

300

3900

18

3060*1620

3060*1800*2120

HT-1.0-6

1000

1130

6

2010*1130

2016*1290*1310

HT-1.0-8

1000

1380

8

2010*1130

2016*1290*1420

HT-1.0-10

1000

1580

10

2010*1130

2016*1290*1620

HT-1.0-12

1000

2400

12

2462*1210

2465*1360*1780

HT-1.0-14

1000

2800

14

2845*1420

2845*1620*1895
